The Dashboard feature in the Compliance Data Platform allows for selected reports to be grouped and displayed for users based on their role within the system. They are designed to present the desired information based on current data at the time of logging into CenTrax NEXT. This document explores how to create a new Dashboard.
Step 1 Log into the CDP/CenTrax NEXT
Step 2 The Dashboard will be the landing page
1.1 The Institutional Dashboard is a default dashboard that cannot be modified.

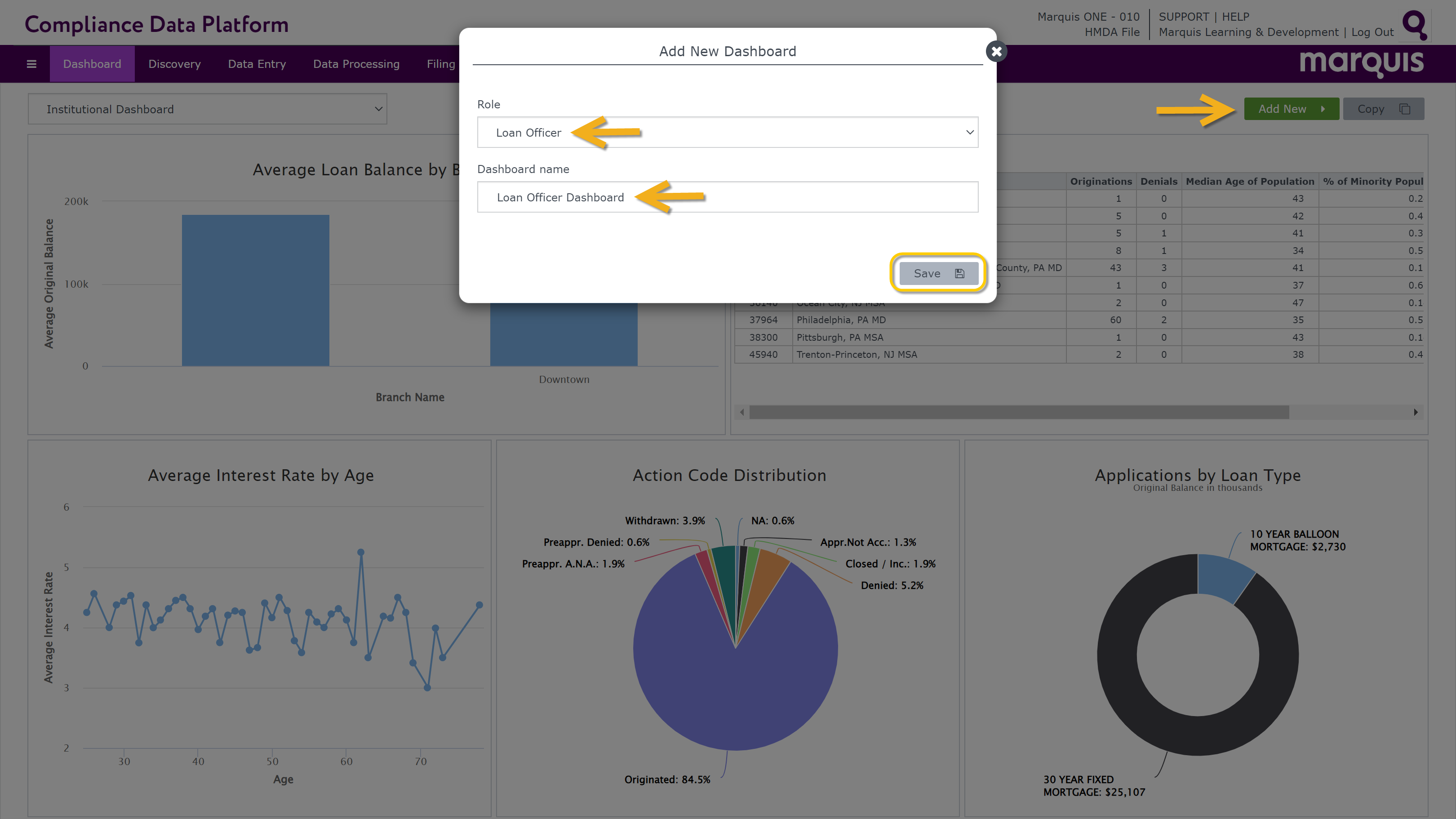

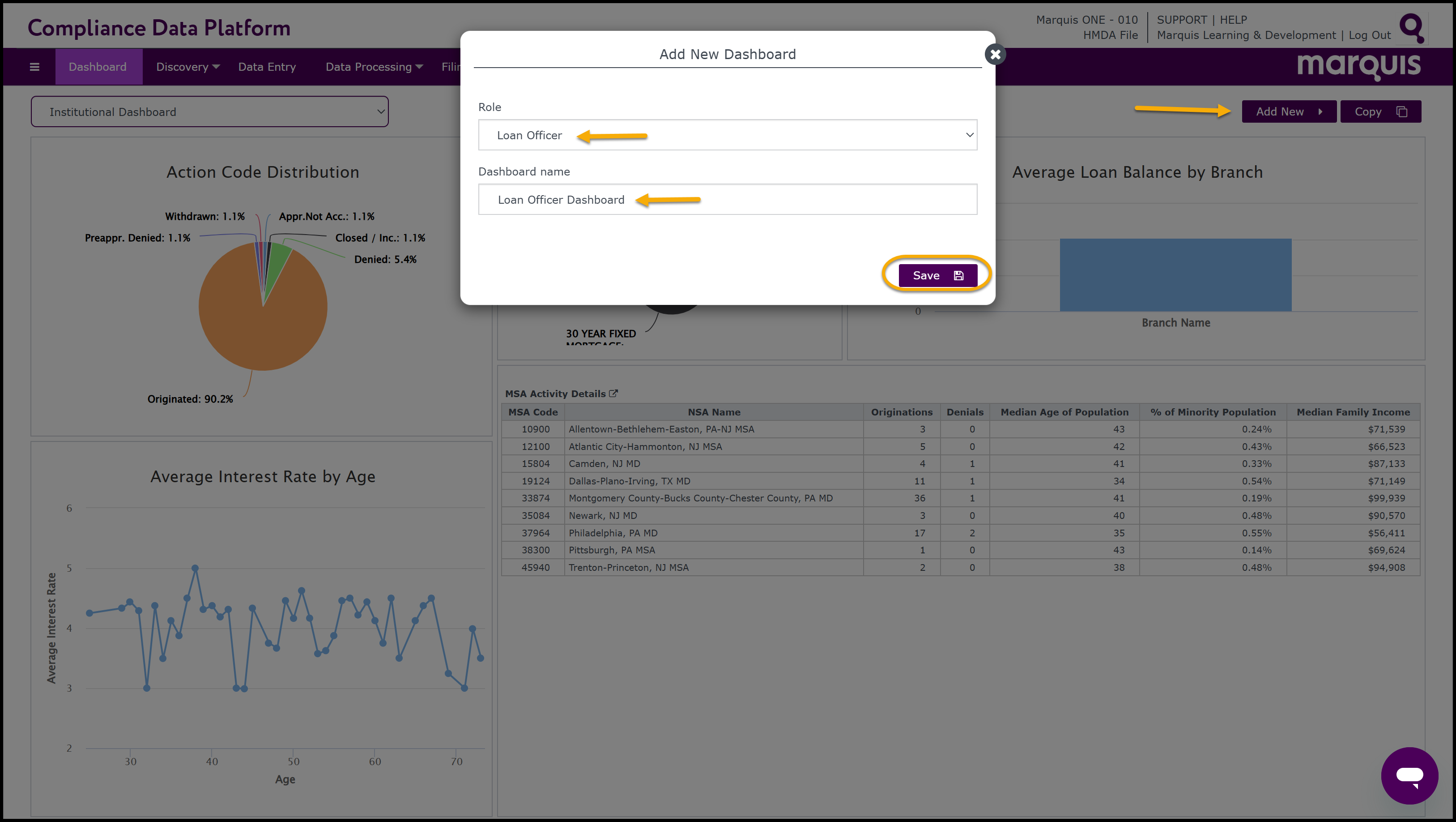

Step 3 To create a new Dashboard, click the green Add New button on the top right of the page
3.1 Click the drop-down arrow in the Role box to select who will have access to the dashboard
3.2 Type in a name for the Dashboard
3.3 Click Save
Note: The Dashboard Elements Report library is located on the right hand side of the Dashboard page. Click on the red button on the center right of the page to expand and collapse the Dashboard Elements library.

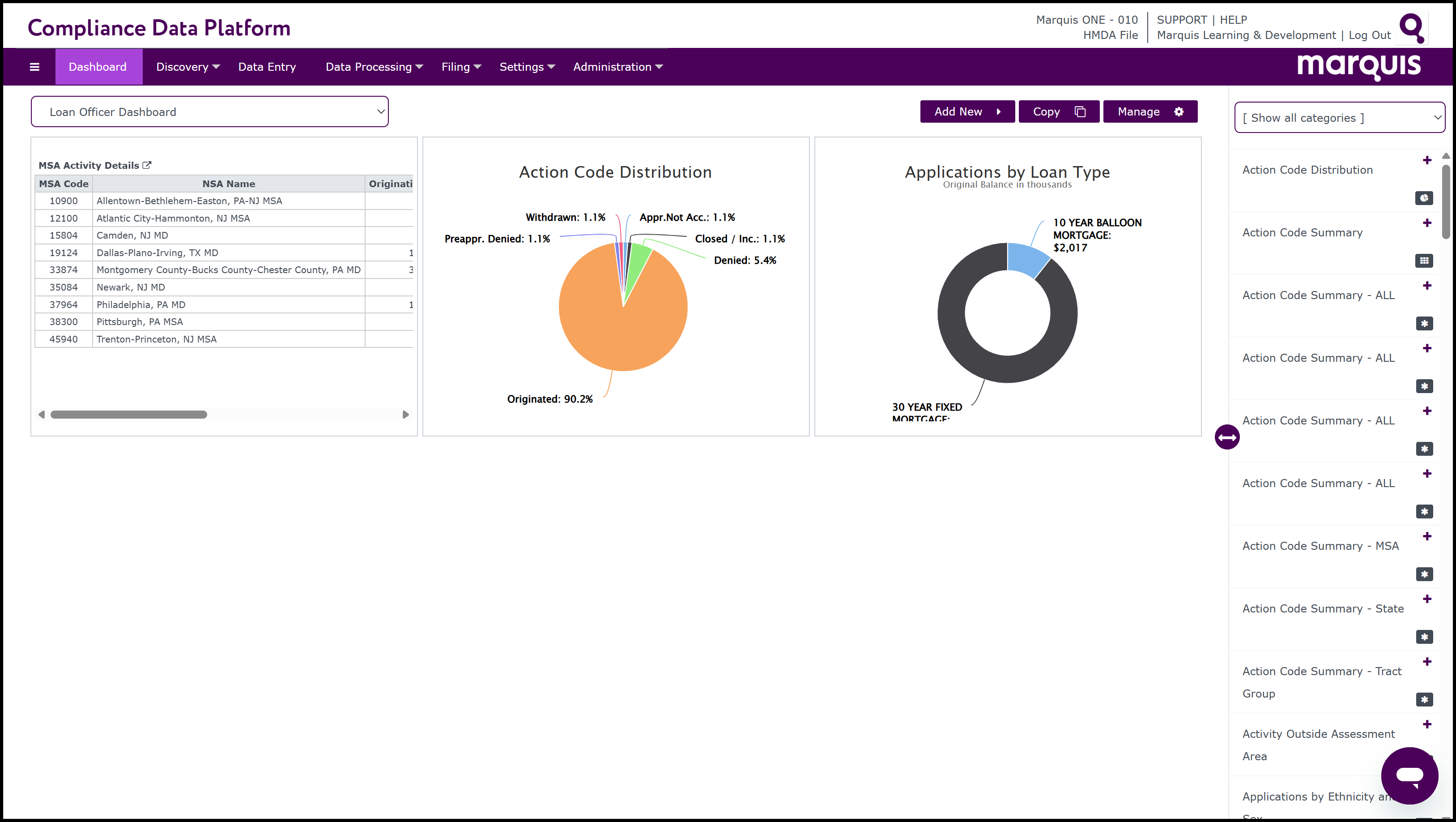

Step 4 Add the desired reports to the Dashboard from the Dashboard Elements Report Library
4.1 Click the drop-down arrow in the Category box in order to isolate the list to display only those reports within a Dashboard Elements Category (optional)
5.2 Locate a report within the list and click the plus symbol to place it in the dashboard

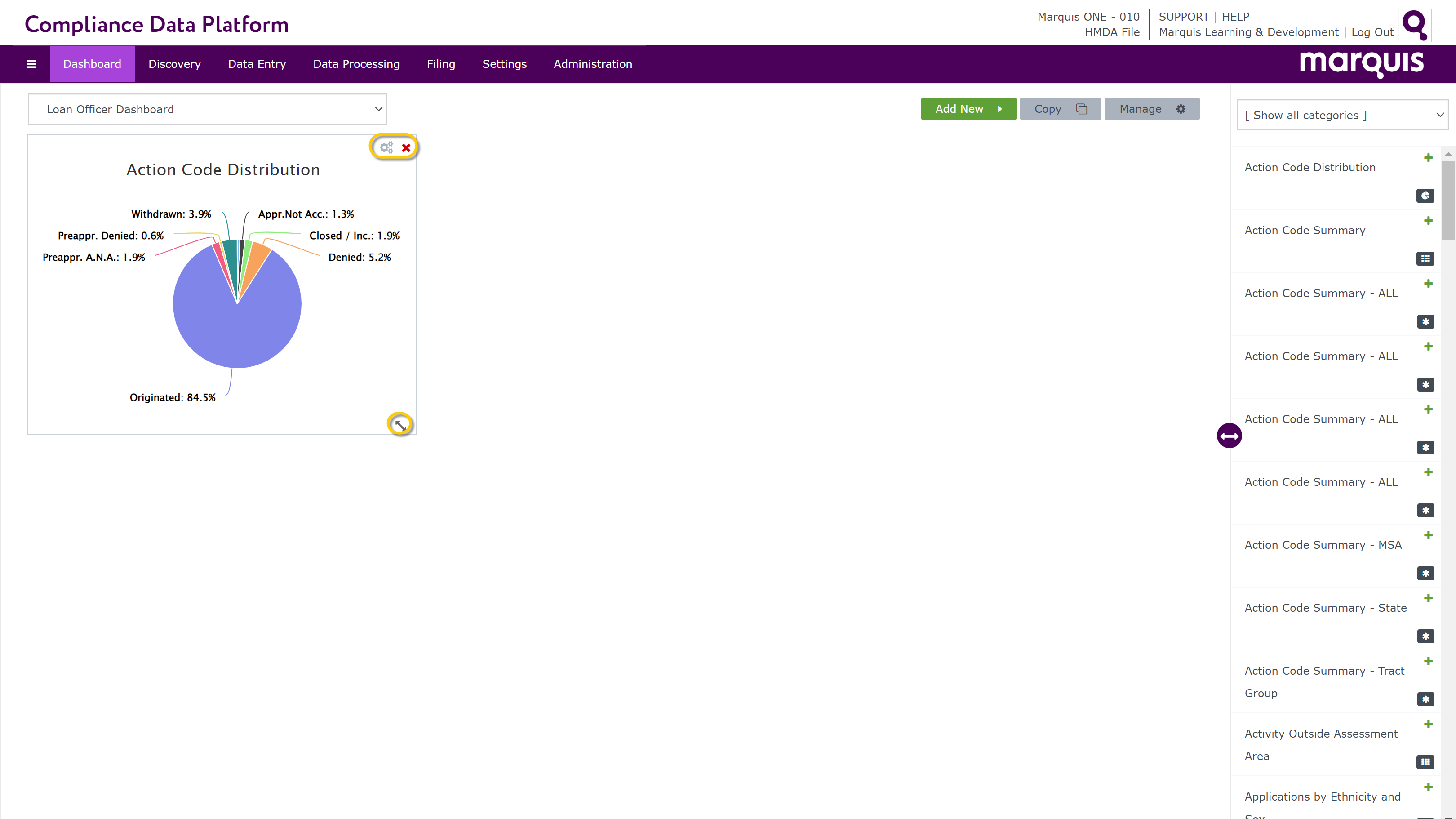

Step 5 To resize the report, hover the mouse in the bottom right hand corner of the report widget, click and drag to the desired location
Step 6 To move the report to the desired location, click in the middle of the report widget, hold and drag to the desired location within the dashboard
Step 7 To remove a report from the dashboard, click on the X located in the upper right hand corner of the report widget.
Note: There is no Save button so any changes made will occur immediately and will be retained automatically.
To save time when creating Dashboards for different Roles, use the Copy button
Step 8 Click the drop-down arrow and select the Dashboard to be copied
Step 9 Click the Copy button located in the upper right-hand corner
9.1 Customize the name to make it unique
9.2 Click the Save button
Step 10 Click the Manage button to change the assigned Role or Name
Step 11 Add or remove reports as needed using the previous steps covered.
Article Reference CNX601
