The Automation Manager allows for the automation of any/all processes in DataPro,in any desired order.
Once a process is added to be automated within the Automation manger, it can be scheduled to run on a specified day(s) or time.
Step 1 Log into the CDP/CenTrax NEXT
The active Institution and File will display in the upper right-hand section to the left of the name of the user logged in.
Step 2 Click Data Processing
Step 3 Click DataPro
Step 4 Click Automation Manager from the menu on the left hand side
Note: Any processes such as deletions or replacements cannot be created within the Automation Manager window. They must be set up within their own menus. If any processes are added after an Automation Manager process is created, they can simply be added at any time and the processes rearranged to work in the desired order.
Step 5 To create a new Automation process, click the green Add New button
Step 6 Establish the Sequence settings
6.1 Click the drop-down arrow next to File to select the CenTrax Next File
Within the Available Options box will be a list of all available options; including Imports, ReplacePro, DeletePro, as well as the Geocode and CASS processes
Step 7 Select the desired Options to be processed in this Automation
7.1 To select an Import Definition, double click on the desired import name
7.2 To select a ReplacePro(s), double click on each desired replace name
7.3 To select a DeletePro(s), double click on each desired delete name
7.4 To select the Geocode process, click Geocode
7.5 To select the CASS process, click on CASS Certify

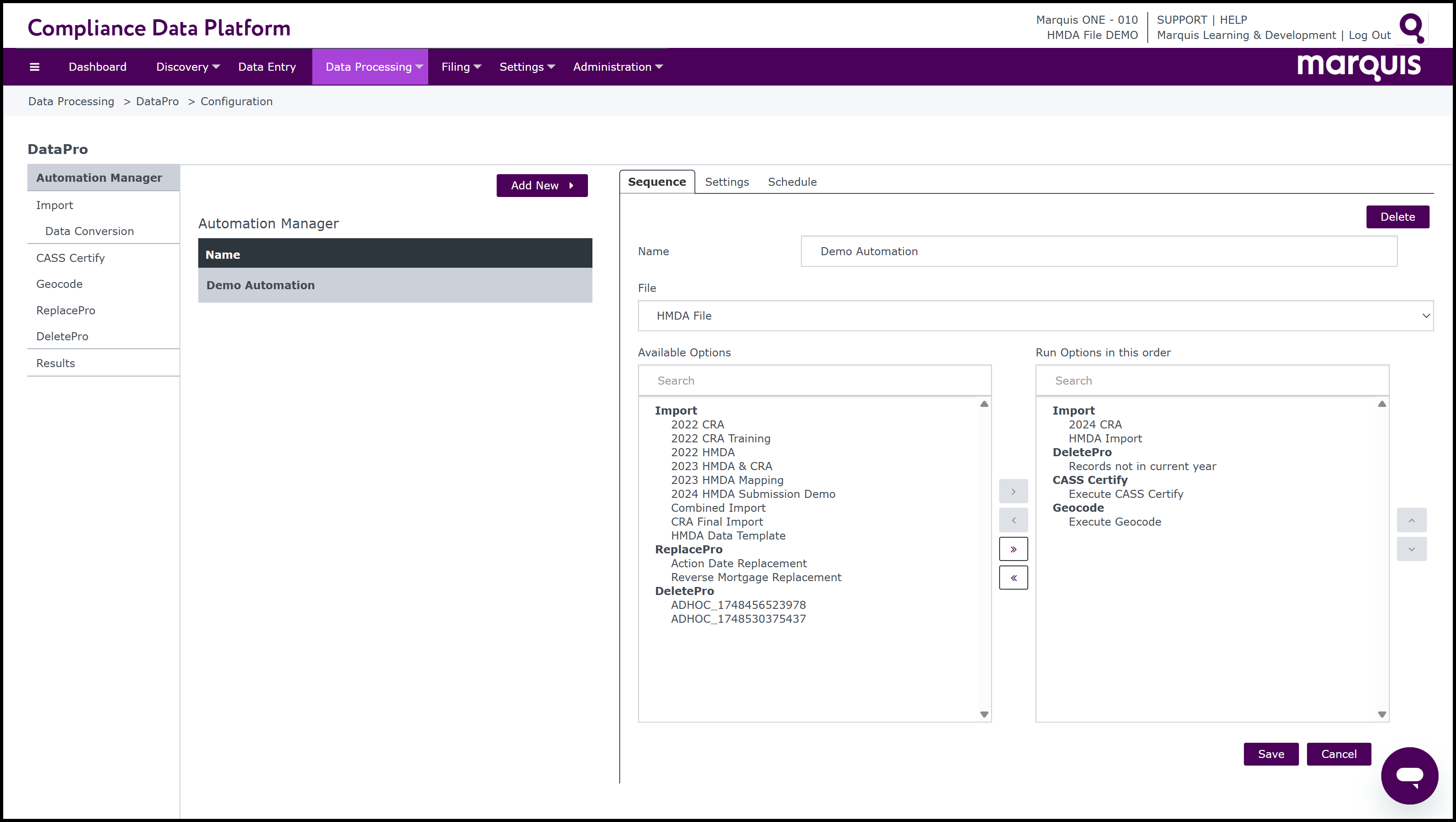

Once the desired options are moved over, they can be rearranged to the desired order
Step 8 To re-order an option, click on it within the list
8.1 Click the up or down arrows located to the right of the box until the option is in the desired order
Step 9 To remove an option from the selection, double click on it in the right-hand box
9.1 When the desired options and order have been defined, click Save
Clicking Save will complete the setup for the Automation option order, but will not yet process or establish a schedule for the Automation Item. Continue to Step 10 for processing the Automation.

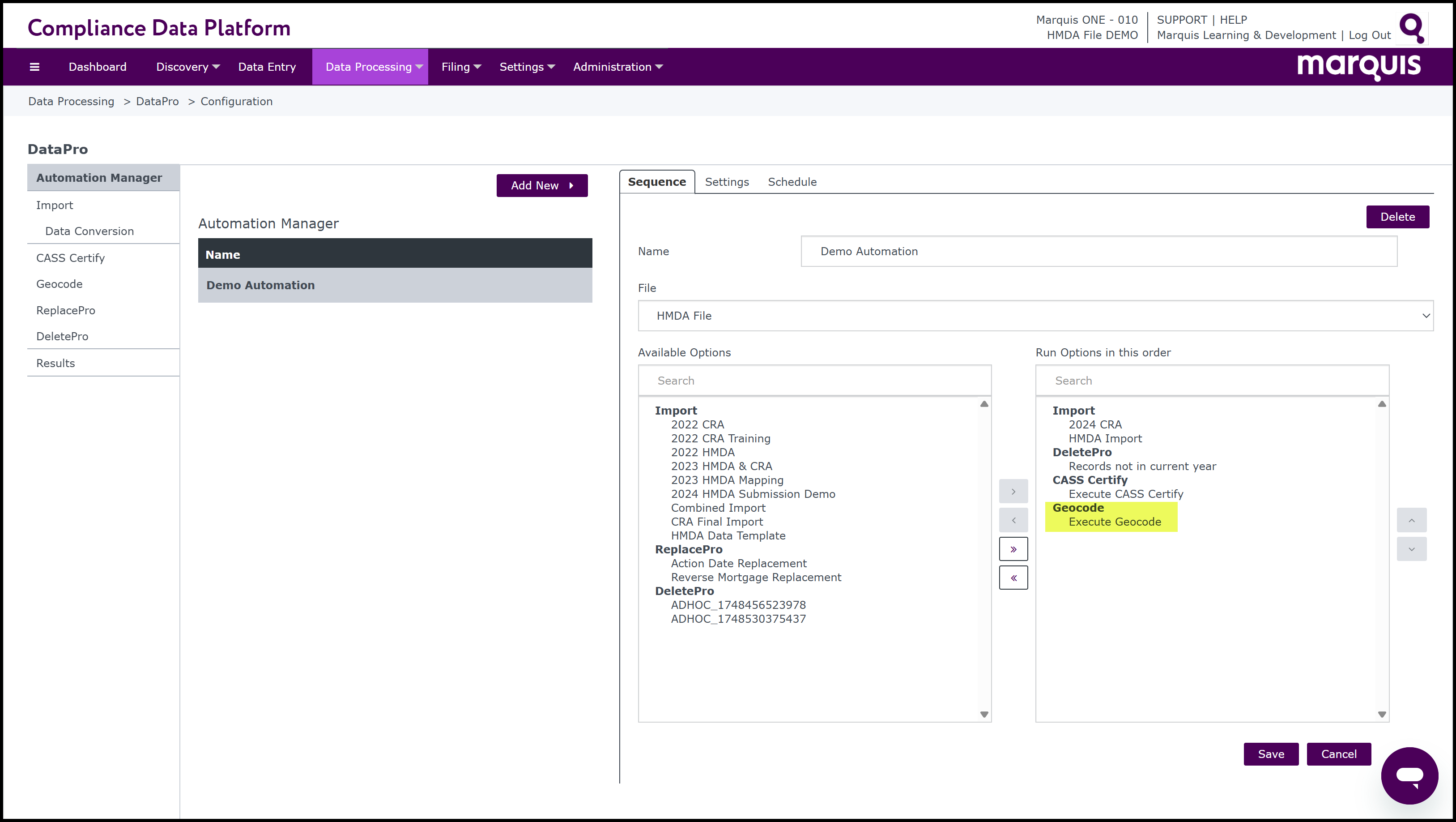

Note: For automations including a geocode, an additional Settings tab is available. Use the desired radio button within the Settings tab to designate the desired Geocode selection – Geocode all Addresses or only the Ungeocoded records. Also note for the Settings tab to be available, the geocode process must be included in the sequence.
Step 10 Establish the Schedule settings
10.1 Click on the Schedule tab
Step 11 To Run Now, click on the first radial dial to enable the Run Now button
11.1 Click the Run Now button
11.2 Once it has finished, click on the Results menu item located on the left-hand side of the page

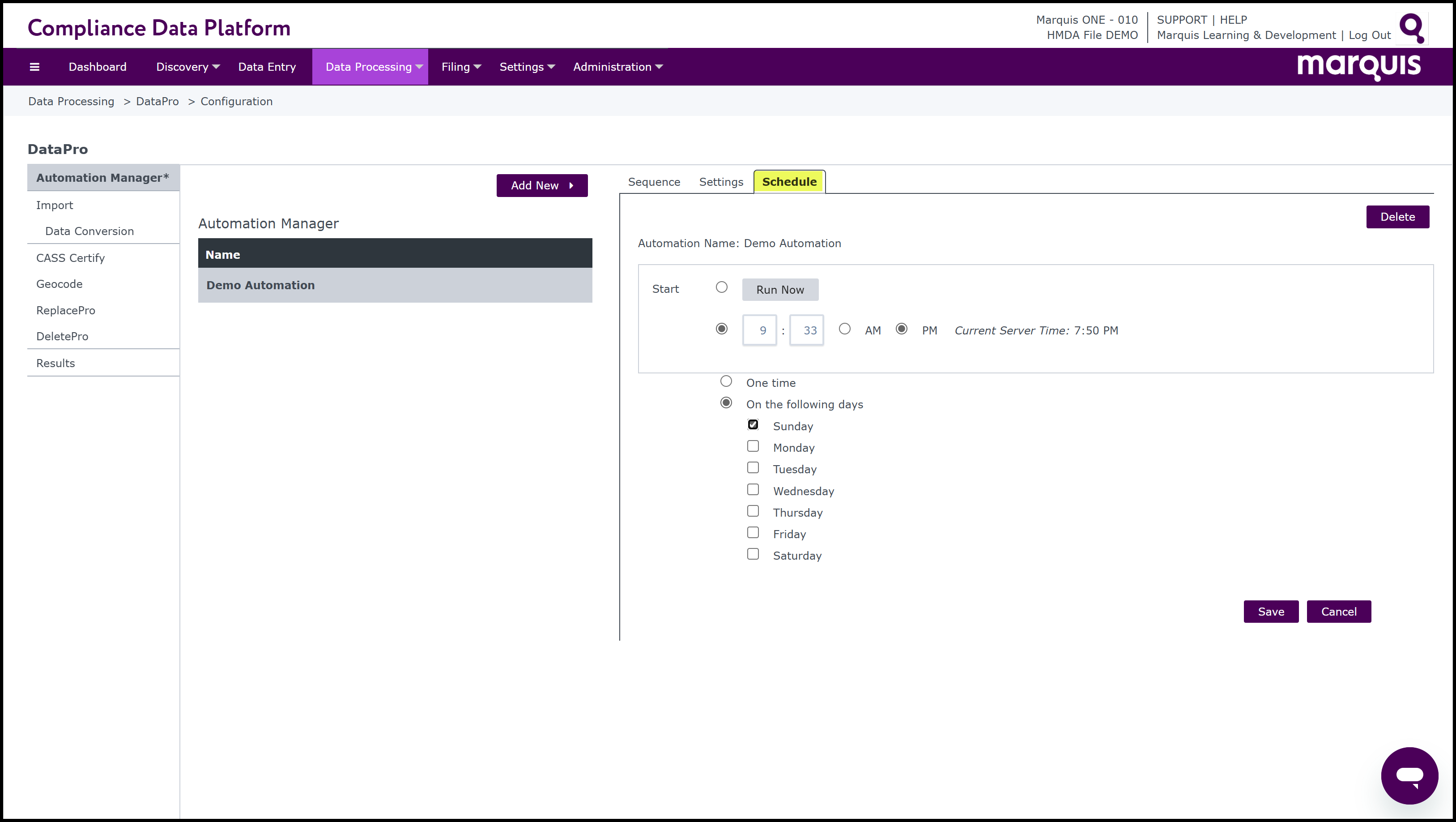

Step 12 To schedule a time frame for when the process should run, click the radial dial next to the clock boxes
12.1 Type in the hour
12.2 Type in the minute
12.3 Select AM or PM
12.4 Next, choose One time or On the following days
12.5 Place a check mark in the desired days if One time is NOT selected
Step 13 Click Save once the selections have been made
Step 14 After the process has run at the scheduled time, click the Results menu item located on the left-hand side of the page to see the results of the completed process
Step 15 To process the Automation at once, click Automation Manager from the menu on the left-hand side
15.1 Click on the Automation within the list
15.2 Click on the Schedule tab
15.3 Click on the first radial dial to enable the Run Now button
15.4 Click the Run Now button
15.5 Once it has finished, click on the Results menu item located on the left-hand side of the page
Step 16 To Edit an Automation, click on the desired Automation in the list
16.1 Make the necessary changes on the Sequence tab
16.2 Make the necessary changes on the Schedule tab
16.3 Click Save to retain the changes
Step 17 To Delete an Automation, click on the Automation within the list
17.1 Click the Delete button in the upper right-hand side of the setup page
17.2 Click Yes to the confirmation message
Article Reference CNX607
